IntuiTread:

Treadmill Interface Revamp

Project Summary

I redesigned a treadmill interface on a team of four and lead the UI/UX design of the project, focusing on enhancing three key functionalities of a treadmill: speed adjustment, incline control, and workout progress monitoring. We initiated our project with in-depth user research and needfinding exercises to understand user pain points and preferences. Through concept flow diagrams and prototypes, we iteratively refined our ideas, incorporating user feedback obtained from heuristic evaluations. Usability testing played a crucial role in identifying user problems and concerns, guiding our design decisions towards improving the overall user experience. I spearheaded the development of our refined prototype using Figma, establishing a comprehensive design system and components for the user interactions. Through this project, I gained valuable insights into UI design principles and the importance of user testing. Our collaborative efforts culminated in a revamped treadmill interface that addressed user needs effectively, showcasing my proficiency in user-centered design, iterative prototyping, and creating intuitive digital experiences.

UI/UX Design | Prototyping | UX Research

Project Details

Role: UI/UX Designer

Duration: February - March 2023

Figma: View here

Tools: Figma

Challenge

Redesign an existing interactive system to address cognitive human factors issues. The interactive system must be one where a user is primarily engaged in another task.

How might we make interacting with a treadmill interface during a workout an easy yet visually digestible and intuitive task?

Solution

My team and I conducted user research to find the pain points of users interacting with a treadmill interface while engaged in their exercise activity. We conducted many stages of prototyping and user testing. I lead the efforts for the redesign of the treadmill interface for our final refined prototype, IntuiTread. This user-centric design focused on three main goals:

  1. Simplification

  2. Customization

  3. Discoverability

Design Process

  • 1. Empathize

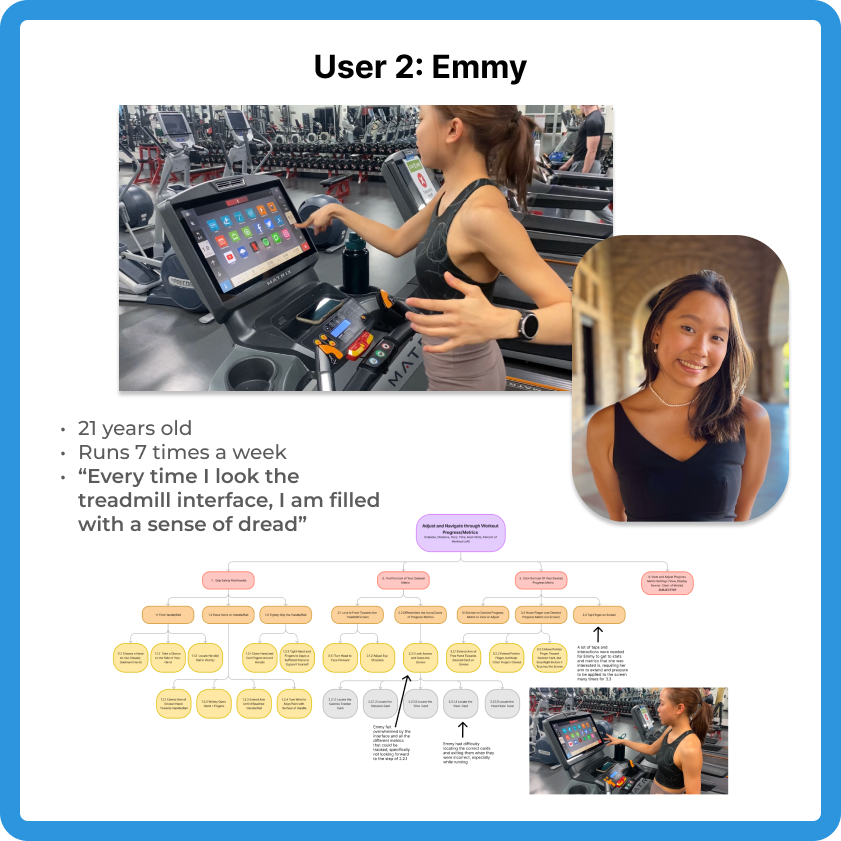

    Our redesign focused on enhancing the user experience by streamlining three critical tasks: increasing speed, adjusting incline, and checking workout progress and statistics. Creating task analysis hierarchies for each of these tasks, we observed users and annotated where we found key pain points, as well as sought their feedback.

  • 2. Define

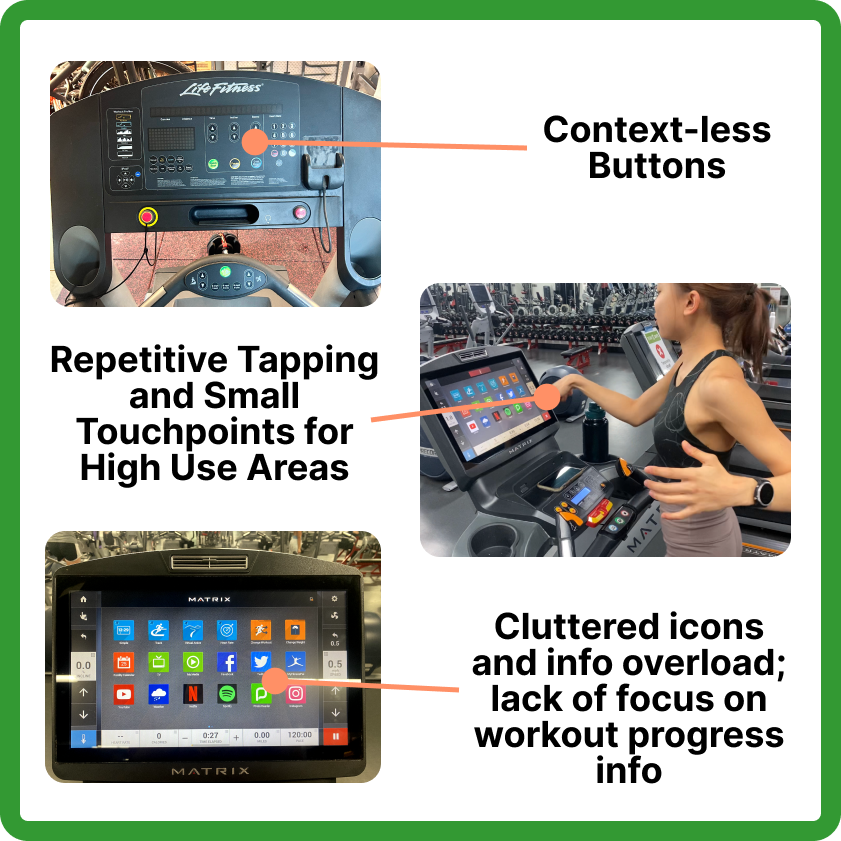

    At this stage, we defined key challenges and pain points from the user observations and annotations from our task analyses, deciding our areas of focus for our redesign. By eliminating the pain points, we sought to make the tasks more intuitive and less intrusive to the user's exercise routine. We also found errors that were not related to process or navigation, but still problematic for usability.

  • 3. Ideate

    We focused on idea generation, combining efforts to target the three essential tasks: increasing the treadmill's speed, adjusting its incline, and monitoring workout progress. Our ideas sought to address pain points that we decided on previously. Overall, we generated ~30 ideas for our interface.

  • 4. Prototype

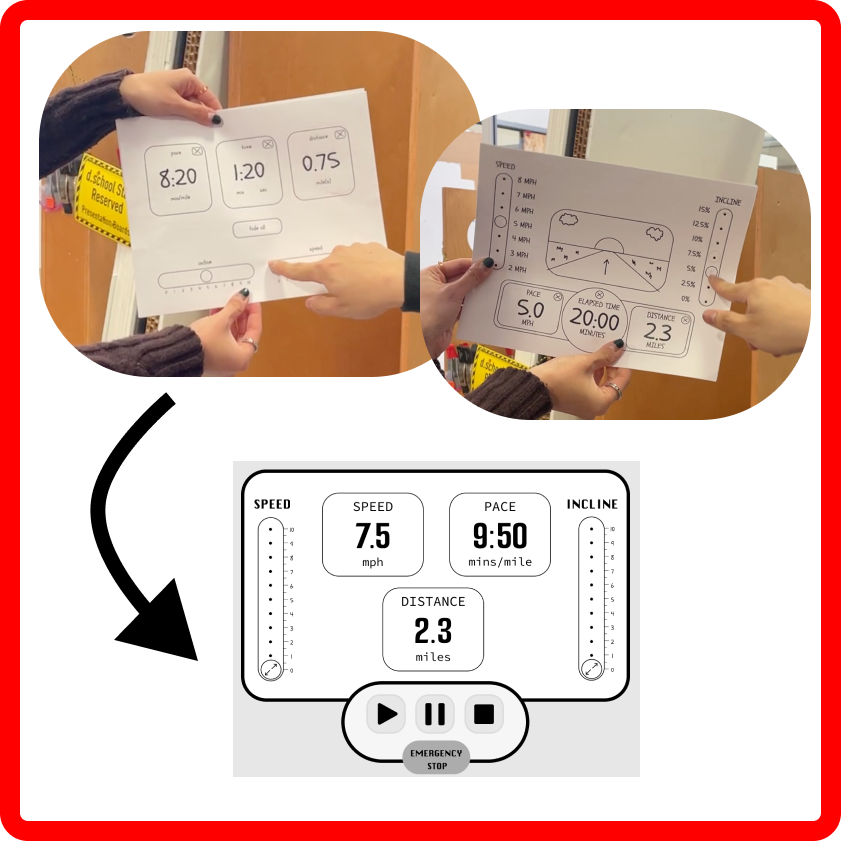

    At this stage of the design process, we rapidly prototyped to test ideas that we generated before. We iterated quick paper prototypes of the interface, getting feedback from users and our team on what worked and didn’t. Our findings led us to create our wireframe mockup of our treadmill interface, with basic interactions in Figma.

  • 5. Test

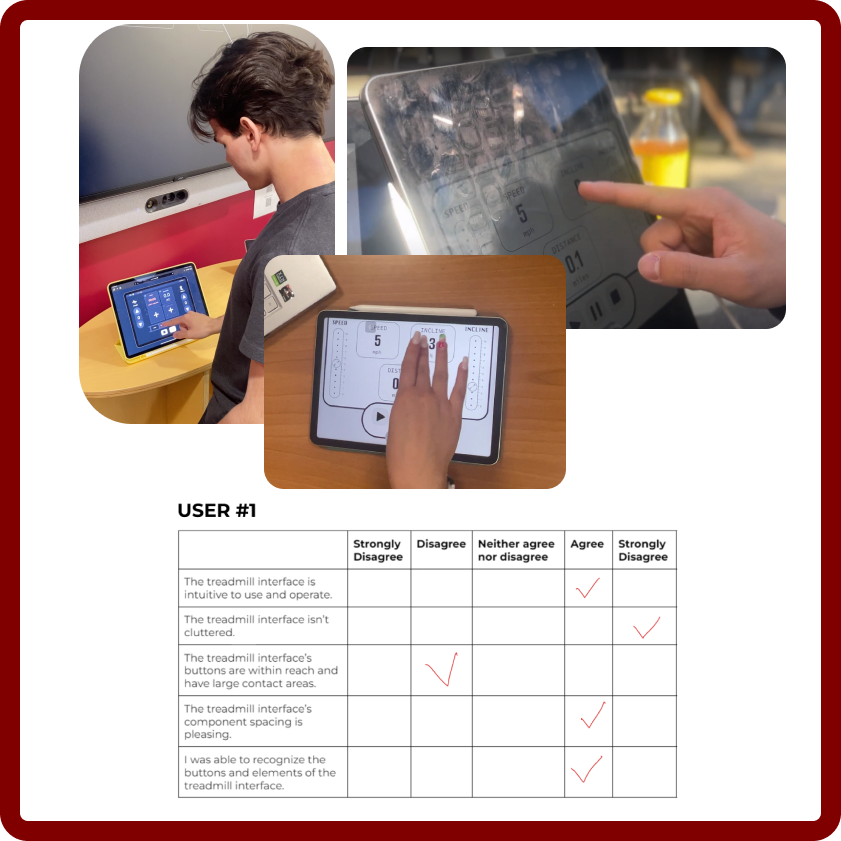

    We conducted three rounds of user testing. Our first round focused on heuristic evaluations of our prototypes, categorized by severity ratings, helping us optimize. We found needed design changes and implemented them, conducting more user testing. We were cognizant of our testing environment, maintain a professionally neutral tone, and record detailed notes.

learn more about the stanford d.school design process

Final Product

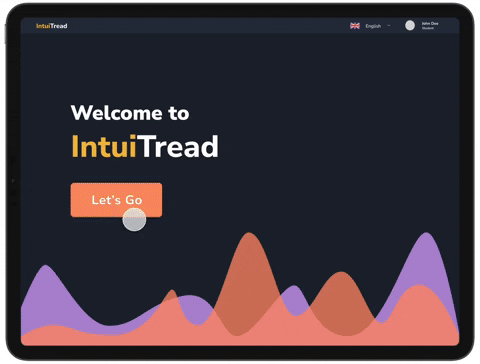

Our final product focused on three main aspects: simplification, customization, and discoverability. We implemented these features within a refined prototype which I lead the design for. The video to the left demonstrates a user flow.

Scroll down for more information about some of my design processes, such as UI design, task analyses, concept development, sketching, and user research.

UI Design

Using Figma, I designed the user interface and interactions for our final refined prototype, IntuiTread. I designed with accessibility in mind, including visual cues through color, text, and illustration so that the user understands the interface intuitively. Most of the main workout functions were centered to ensure users with a low field of vision could see the most important components. Instead of a slider, a counter was used to ensure the safety of the user (from sliding up too fast). Other design considerations are shown below.

Some of the UI Components

Checked For Colorblind Compatability

Ensured High Contrast Colors for Low Vision or Visually Impaired Users

Task Analyses

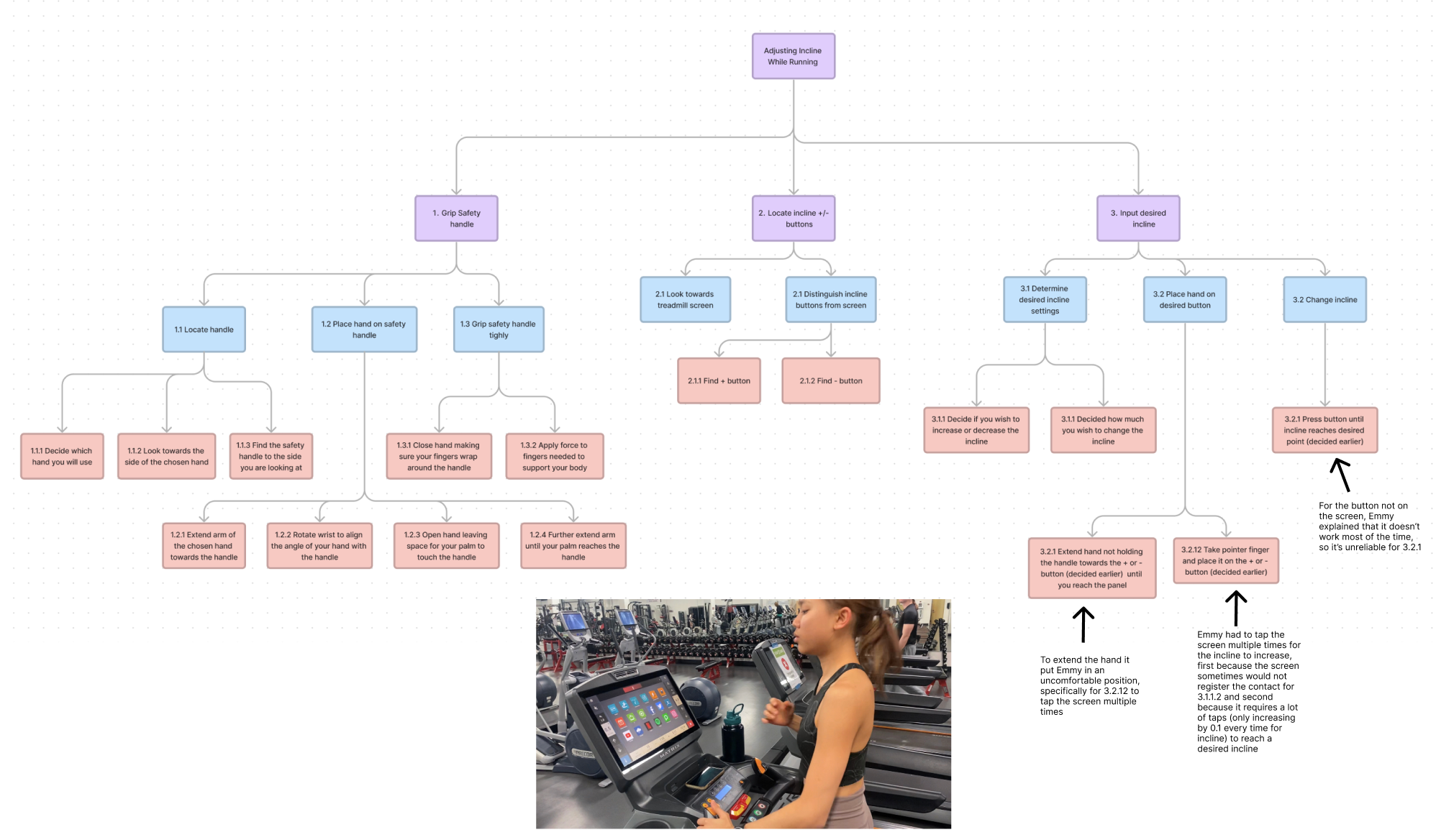

We created a hierarchical task analysis for each of the three primary operational tasks. By examining these tasks individually, we aimed to identify the specific actions and decisions users must make, which will help streamline the interaction process and enhance overall workout efficiency.

Based on user observations, we annotated the analyses. User 2, Emmy, was the user that I focused on for our observations.

Concept Development

Concept A strategically places speed and incline controls at the bottom of the screen, leveraging natural arm movement patterns for intuitive adjustments. A horizontal sliding mechanism ensures quick and precise control, while the centralized workout progress display offers easily readable statistics.

Concept B adopts a segmented approach, positioning controls on the sides for peripheral access without distracting from the workout. Vertical sliding mechanisms mirror natural running motions, enhancing immersion, while a customizable progress interface streamlines tracking. Both concepts aim to simplify user interaction, providing a clean and user-friendly experience tailored to individual preferences.

Concept A

Concept B

Sketching

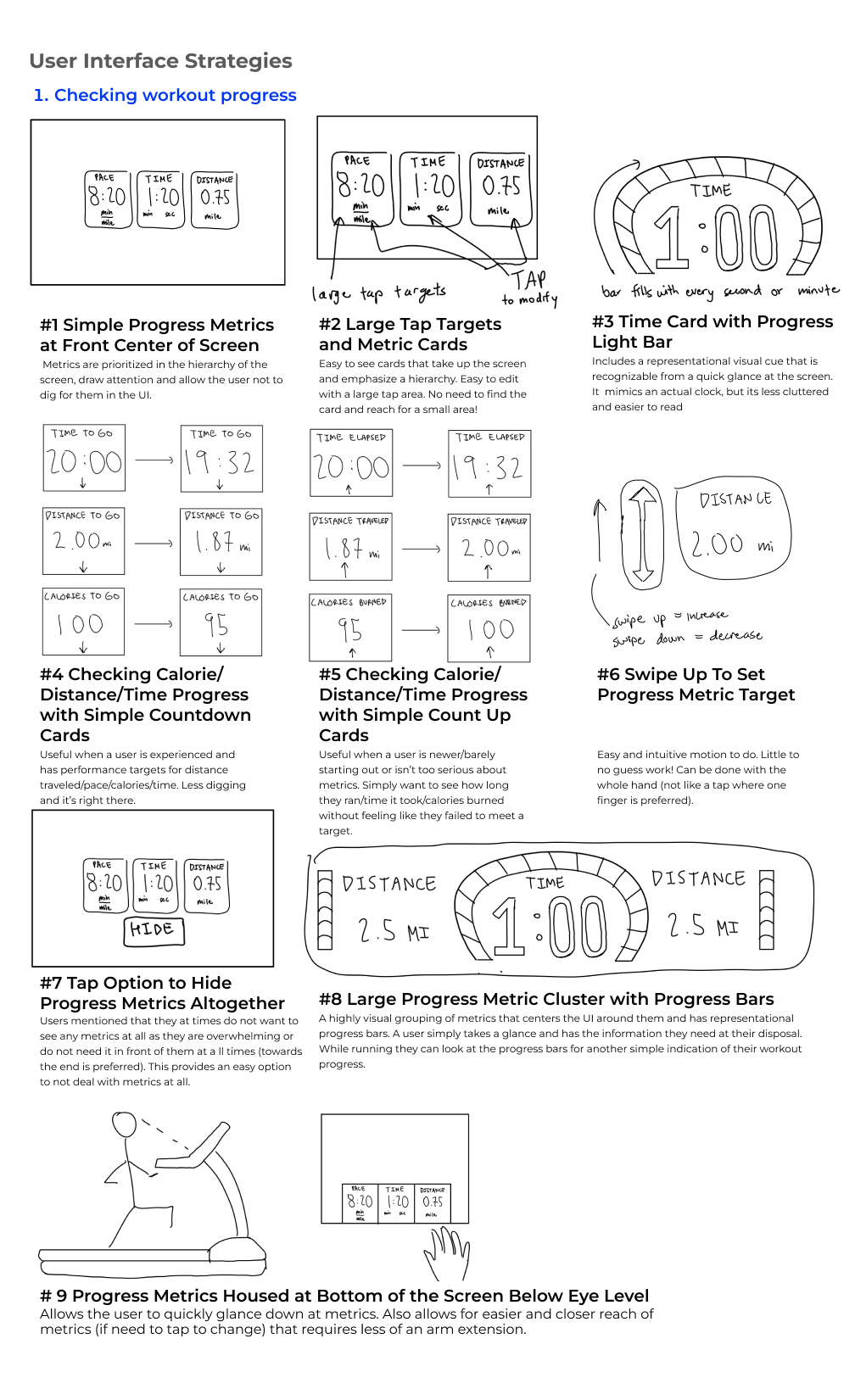

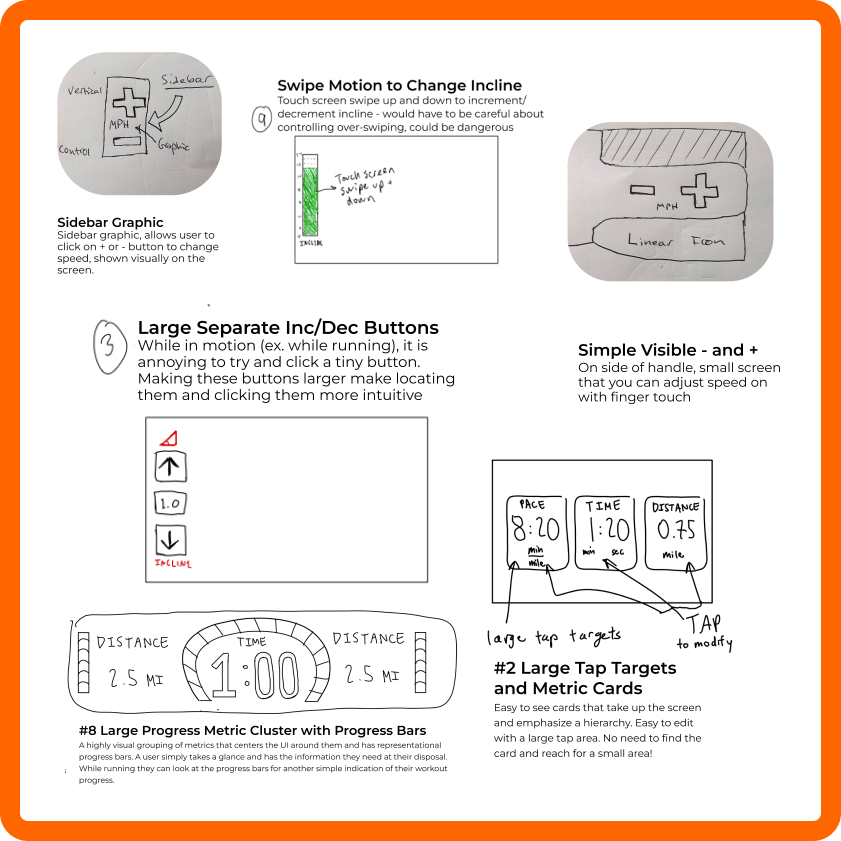

During our ideation stage, we sketched out many different user interface strategies that would eliminate pain points expressed by users. Here are some of the ideas that we generated.

User Research

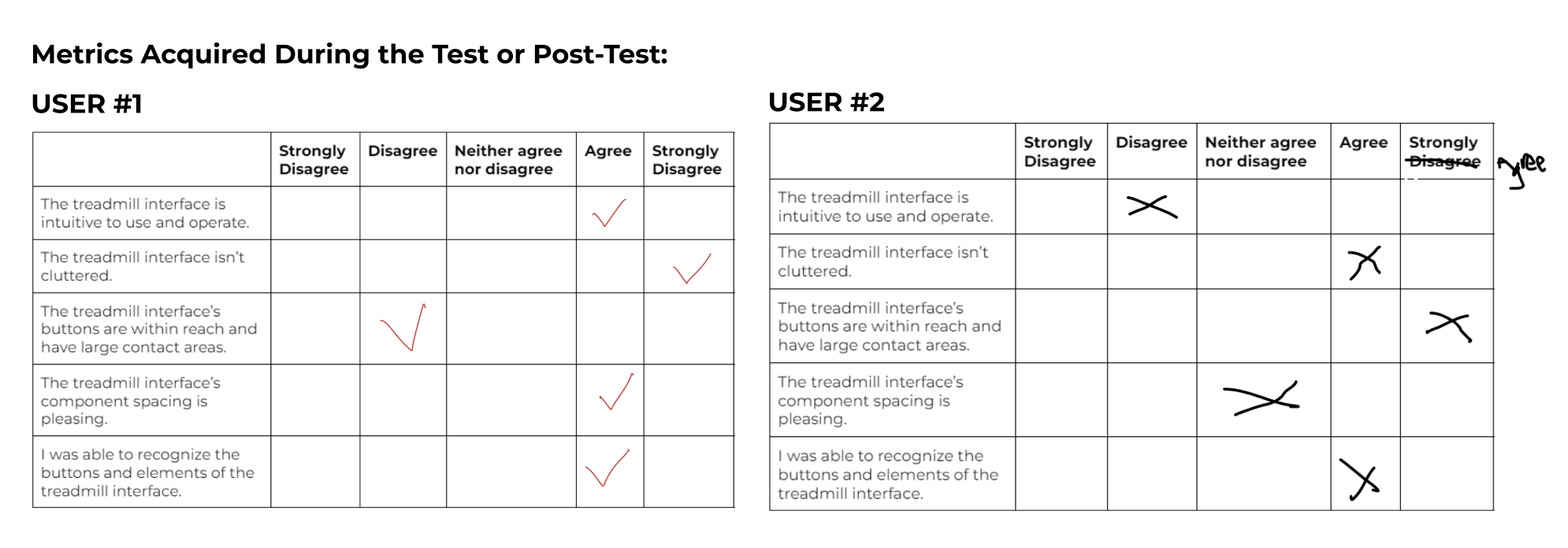

The user research was conducted over multiple weeks, involving testing script generation, evaluation of user flow, heuristic evaluation, creation of metrics to test, and much more. Overall, we would not be able to continue in our prototyping and create our project without the insight from users and emphasis on co-design.
